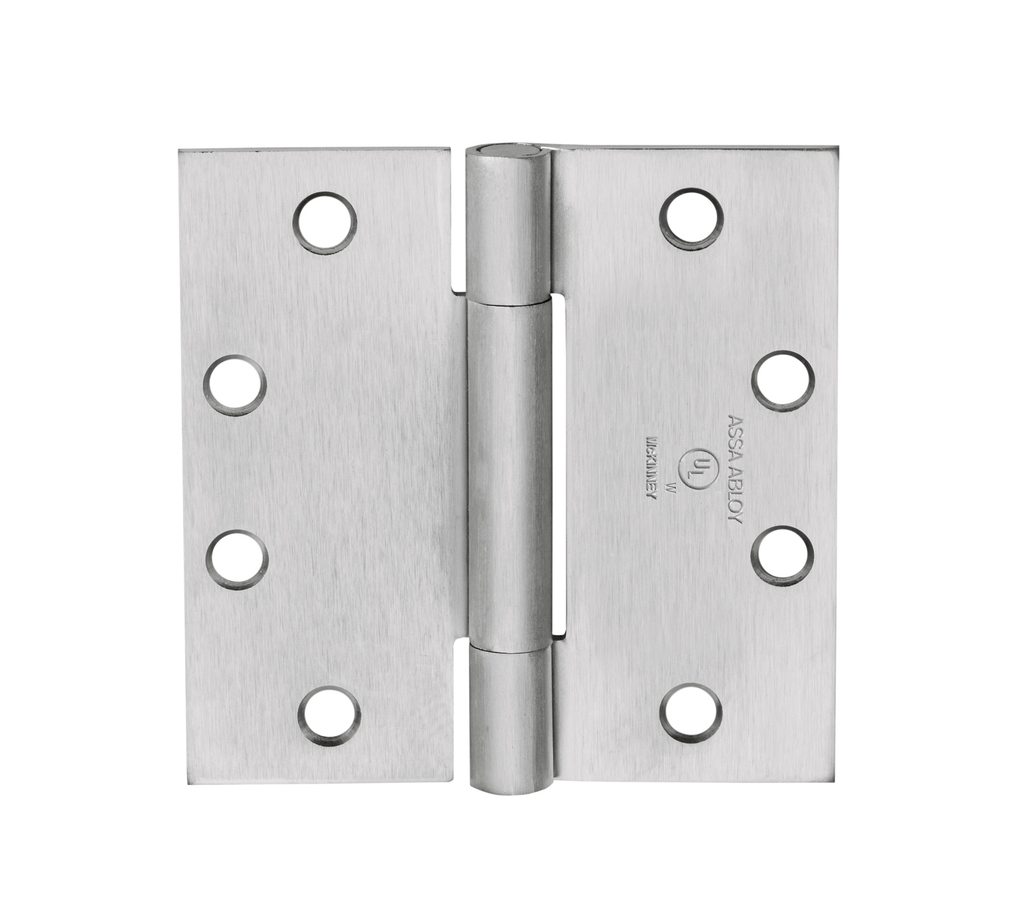

McKinney TA314 NRP Concealed Bearing Hinge | 4-1/2" x 4" US32D Satin Stainless Steel
The McKinney TA314 NRP is a high-security, full-mortise architectural hinge designed for modern commercial openings. Combining a sleek 3-knuckle profile with Non-Removable Pin (NRP) technology and a solid stainless steel base, this hinge is the definitive solution for door security on out-swinging doors. It offers a sophisticated, clean aesthetic for high-end offices, retail storefronts, and coastal facilities while ensuring the door cannot be removed from the frame even if the hinge barrels are exposed to the exterior.
Crafted from high-grade Stainless Steel (US32D), the TA314 NRP provides superior corrosion resistance in sterile or harsh environments. Equipped with concealed vertical and lateral thrust twin anti-friction bearings, it ensures smooth, silent operation for average-traffic doors. The NRP feature consists of a specialized set screw driven into the hinge barrel that is completely inaccessible when the door is closed, preventing unauthorized pin removal. This hinge is a vital component for any solution for door restoration, providing a professional-grade security upgrade without compromising the door’s clean architectural lines.
Key Features & Performance
- NRP High-Security Locking: The Non-Removable Pin is an essential solution for commercial door security, specifically engineered for exterior or outward-swinging doors where forced entry protection is a priority.
- Corrosion-Resistant US32D Finish: Solid stainless steel construction makes this an ideal solution for door restoration in laboratories, coastal areas, or sterile medical environments.
- Concealed Anti-Friction Bearings: Twin bearings are hidden within the joints to manage thrust loads, acting as a permanent solution for door edge reinforcement.
- Modern 3-Knuckle Design: Features a contemporary look with a flush pin and non-rising stainless steel pin, providing a seamless profile for high-end architectural projects.
- Narrow Width Profile: The 4-1/2" x 4" sizing is ideal for specific frame configurations where a slightly narrower leaf is required for a precision fit.
Technical Details & Specifications
- Brand: McKinney (ASSA ABLOY)
- Model Number: TA314 NRP
- Dimensions: 4-1/2" Height x 4" Width (Full Mortise)
- Material: Stainless Steel (Base Material and Pin)
- Finish: US32D (630) Satin Stainless Steel
- Security Feature: NRP (Non-Removable Pin) Set Screw
- Bearing Type: Concealed Vertical & Lateral Thrust (TA Prefix)
- Thickness: .134 Standard Weight
- ANSI Number: A5112
- Fasteners Included: Furnished with All Wood Screws (1-1/4" x 12 FPHW) and All Machine Screws (1/2" x 12-24 FPHM).
Why Choose the McKinney TA314 NRP?
The McKinney TA314 NRP is the professional’s choice for projects that demand the perfect balance of visual elegance, weather resistance, and forced-entry protection. While standard 5-knuckle hinges show visible bearing lines, the concealed bearing technology and NRP security of the TA314 provide a smooth, unbroken profile that safeguards your facility. It offers a permanent and cost-effective solution for door security, delivering industrial-grade reliability and a polished appearance.
| General - US Finishes | US32D - Satin Stainless Steel/ 630 |
| Brand | McKinney |
| Hinge Height | 4.5" Hi |
| Hinge Width | 4.0" Wi |
| Hinge Grade/Thickness | Standard Wt .119 to .146 |
| Hinge Type | Full Mortise |
| Hinge Options | Concealed Bearing, NRP (Non Removable Pin) |
| Base Material | Stainless Steel |
| Hinge Corners | Square |
