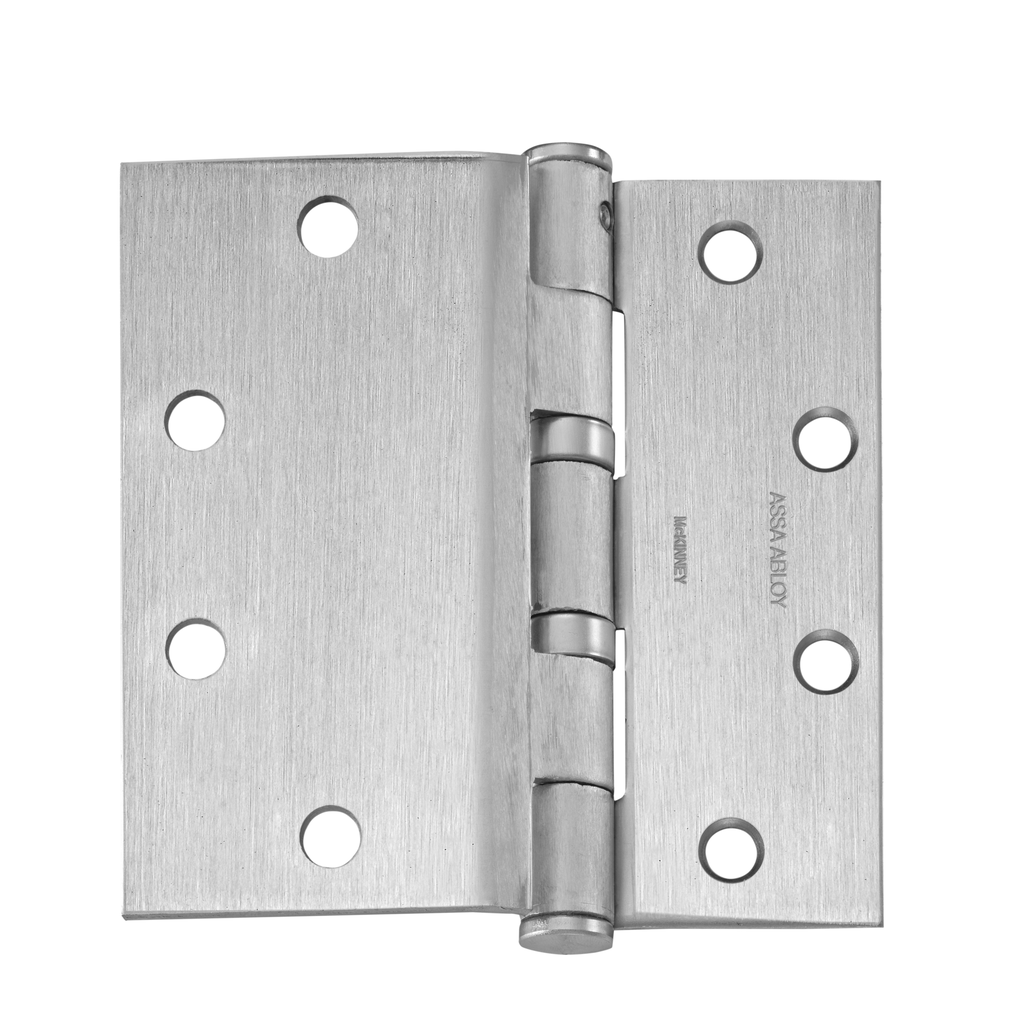

McKinney TA2772 Half Surface Bearing Hinge | 4-1/2" US26D Satin Chrome
The McKinney TA2772 is a professional-grade half surface bearing hinge engineered for medium traffic and average frequency applications. This 5-knuckle steel hinge is an ideal solution for door restoration in high-use facilities such as schools, hospitals, and public buildings. Its specialized half-surface design allows the jamb leaf to be mortised into the frame while the door leaf is applied to the surface of the door, providing a robust solution for door edge reinforcement.
Advanced Oil Impregnated Bearings (TA Prefix)
The TA Prefix signifies McKinney’s high-performance oil impregnated bearing system. These one-piece, non-ferrous, and self-lubricating bearings ensure:
- Superior Longevity: Drastically reduces wear and friction for a smoother, longer-lasting door swing.
- Environmental Resistance: Engineered to resist clogging and corrosion, preventing common hinge failures in demanding environments.
- Maintenance-Free Operation: Provides a permanent solution for commercial door security without the need for frequent manual lubrication.
Versatile Security & Installation
- Reversible NRP (Non-Removable Pin): The pin is secured by an NRP set screw, which prevents unauthorized removal and allows the hinge to be used for both left- and right-hand door swings.
- Heavy-Duty Fastening: This hinge is packed with all necessary machine screws (1/2" x 12-24 FPHM) and thru bolts with grommet nuts specifically for 1-3/4" thick doors.
- Standard Weight Performance: Featuring a .134 thickness, it meets ANSI A8412 benchmarks for structural durability and reliability.
- Fire Door Compatibility: Offers an option for back plates, which are often a required solution for door surface repair and reinforcement on mineral core wood fire doors (rated above 45 minutes).
Technical Details & Specifications
- Brand: McKinney (ASSA ABLOY)
- Model: TA2772
- Dimensions: 4-1/2" Height (Standard Weight .134 Gauge)
- Finish: US26D / 626 (Satin Chrome Plated)
- Base Material: Plated Steel
- ANSI Number: A8412
Why Choose the McKinney TA2772?
The McKinney TA2772 is the definitive choice for architectural projects requiring a secure and adaptable solution for door security. Whether you are outfitting new medium-weight wood or metal doors or upgrading existing hardware, its combination of self-lubricating bearings and thru bolt mounting ensures a high-intent, professional installation that stands the test of time.
| General - US Finishes | US26D - Satin Chrome |
| Brand | McKinney |
| Hinge Height | 4.5" Hi |
| Hinge Grade/Thickness | Standard Wt .119 to .146 |
| Hinge Type | Half Surface |
| Hinge Options | Ball Bearing, NRP (Non Removable Pin) |
| Base Material | Steel |
| Hinge Corners | Square |
