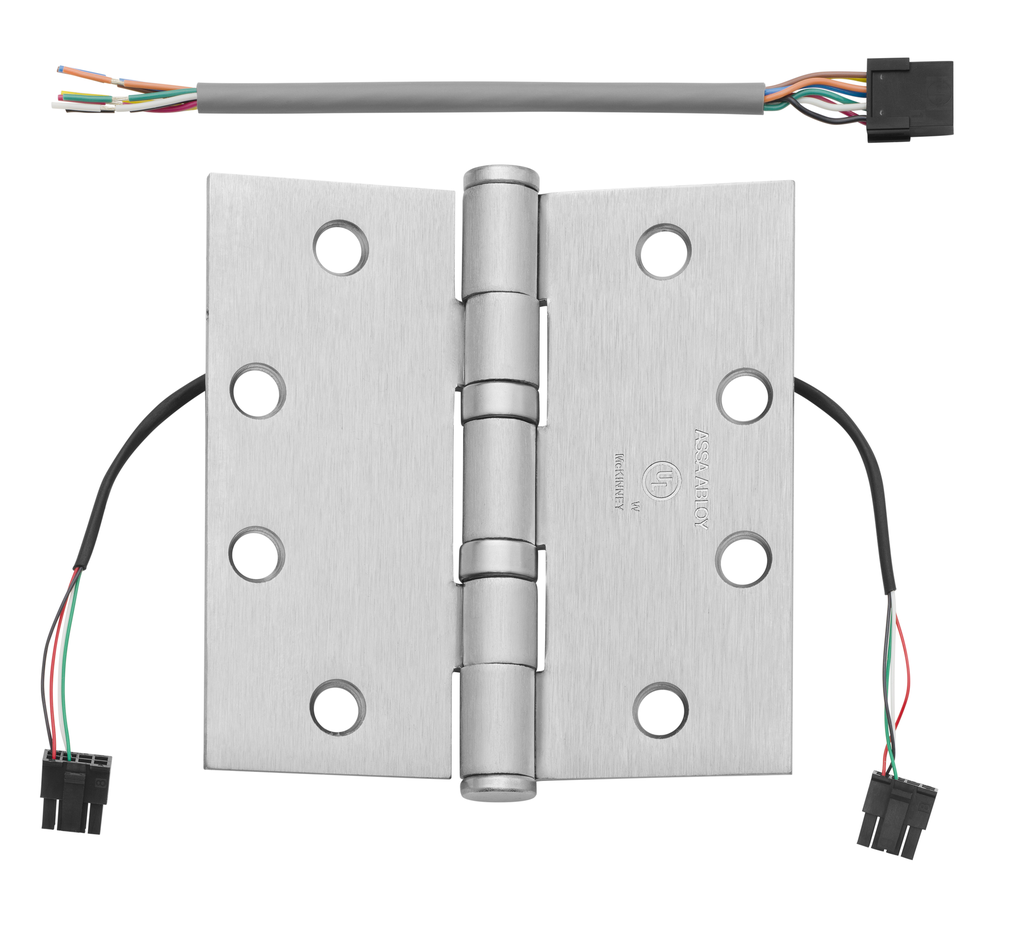

McKinney TA2714 QC4 ElectroLynx Electrified Hinge | 4-1/2" x 4-1/2" US26D
The McKinney TA2714 QC4 is a high-performance electrified hinge featuring the industry-leading ElectroLynx Quick Connect system. This "plug-and-play" solution is specifically engineered to streamline the transfer of power from the wall through the hinge to the door’s electrified hardware. Designed for average traffic commercial construction, this hinge is the ultimate solution for door restoration and modern security integration, eliminating complex manual wiring with standardized, installer-friendly connectors.
Equipped with a QC4 (4-wire, 2-circuit) configuration, this hinge is the recommended solution for commercial door security when transferring power to an ASSA ABLOY brand Electric Strike or electrified lockset. The ElectroLynx connectors are concealed within the hinge, ensuring a clean, vandal-resistant installation that is UL Listed for use on fire-rated doors for up to 3 hours.
Key Features & Performance
- ElectroLynx Quick Connect (QC4): Features a standardized 8-position connector (using 4 wires) that snaps together with ElectroLynx harnesses, providing a fail-safe solution for door security.
- Plug-and-Play Installation: Drastically reduces labor time and eliminates wiring guesswork; perfect for fast-paced institutional retrofits.
- Oil-Impregnated Bearings (TA Prefix): Utilizes one-piece, self-lubricating, non-ferrous bearings to prevent clogging and corrosion, acting as a permanent solution for door edge reinforcement.
- Durable Electrical Path: Uses 28-gauge multi-strand wire rated for 4.0 Amps continuous at 24V AC/DC per circuit, reinforced with brass eyelets for long-term protection.
- Satin Chrome (US26D) Finish: Provides a professional, architectural appearance that resists wear and matches standard commercial hardware.
Technical Details & Specifications
- Brand: McKinney (ASSA ABLOY)
- Model Number: TA2714 QC4
- Dimensions: 4-1/2" x 4-1/2" (Standard Weight .134 Thickness)
- Finish: US26D (626) Satin Chrome
- Wiring: 4 Wires, 2 Circuits (8-position connector)

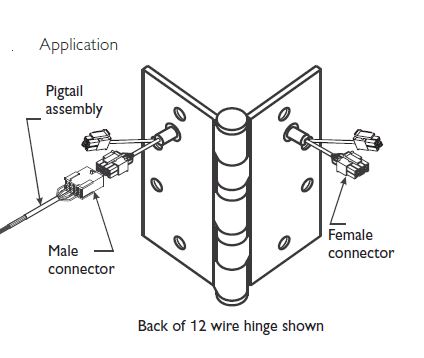

- Pigtail Included: Provided for seamless connection to the source wiring at the jamb.
- ANSI Number: A8112 (Template Screw Hole Pattern)
- Fasteners Included: Furnished with All Wood Screws (1-1/4" x 12) and All Machine Screws (1/2" x 12-24).
Important Installation Notes
The McKinney TA2714 QC4 includes a Non-Rising Steel Pin with button tips for enhanced security. This hinge serves as a robust solution for door surface repair when converting manual doors to electrified access control. Because it utilizes the ElectroLynx system, it is most effective when used with coordinating ASSA ABLOY electrified hardware and harnesses.
Why Choose the McKinney TA2714 QC4?
The McKinney TA2714 QC4 is the professional’s choice for projects that demand speed, reliability, and aesthetics. By utilizing the ElectroLynx connector system, you eliminate the risk of wire failure caused by poor field splices. It offers a permanent and cost-effective solution for door security, delivering industrial-grade performance and the polished appearance required for modern healthcare, educational, and public facilities.
| General - US Finishes | US26D - Satin Chrome |
| Brand | McKinney |
| Hinge Height | 4.5" Hi |
| Hinge Width | 4.5" Wi |
| Hinge Grade/Thickness | Standard Wt .119 to .146 |
| Hinge Type | Full Mortise, Electric Hinge |
| Hinge Options | Ball Bearing |
| Electric Hinge Options | QC4 - Electrolynx, Power Transfer, 4 Wire |
| Base Material | Steel |
| Hinge Corners | Square |
