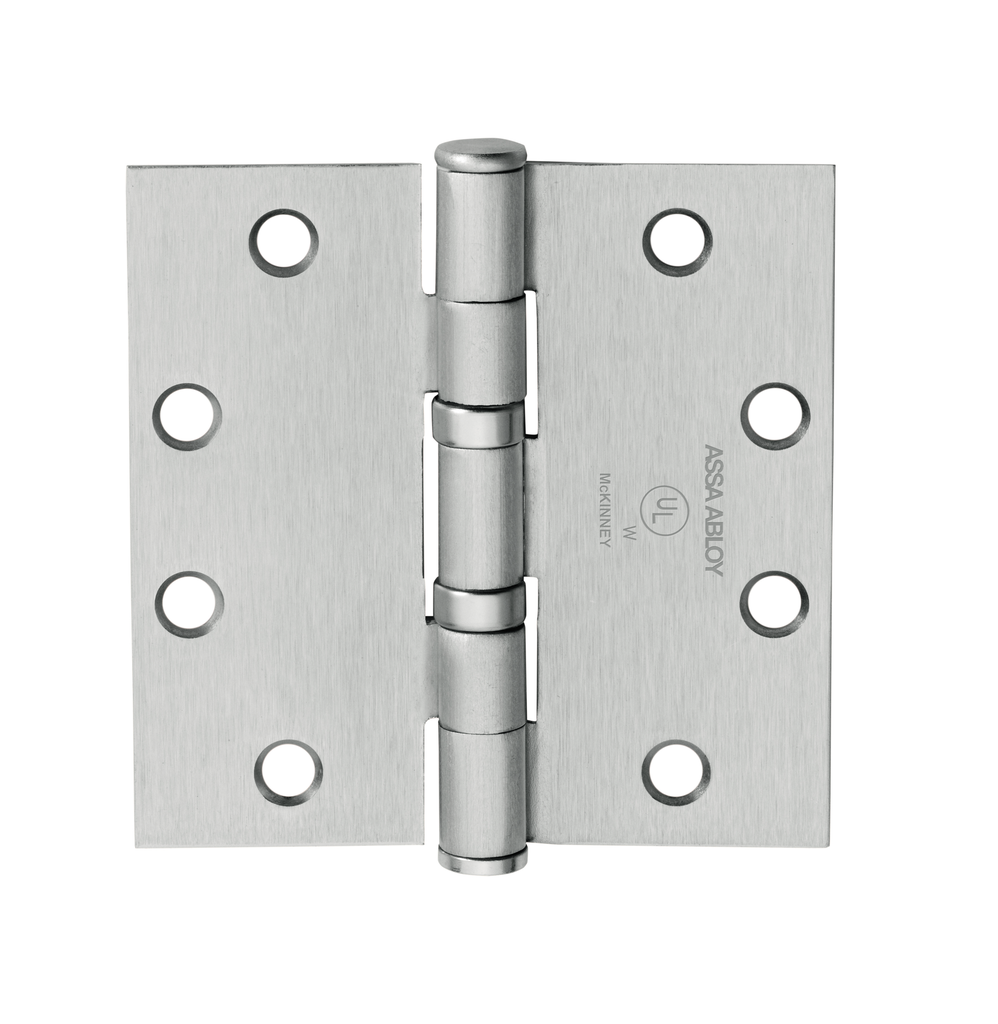

McKinney TA2314 Standard Weight Hinge | 5" x 4.5" US32D Satin Stainless Steel
The McKinney TA2314 is a high-performance, non-ferrous architectural hinge designed for average traffic in commercial construction. Engineered with a precise .134 standard weight thickness, this 5-knuckle, full mortise hinge is a premier solution for door restoration, offering a perfect balance of architectural aesthetics and industrial durability. Crafted from high-grade stainless steel, it is a reliable choice for office buildings, hospitals, and public facilities.
Key Performance & Durability
- Oil Impregnated Bearings (TA Prefix): Features specialized self-lubricating bearings that ensure long-lasting wear and resistance to clogging, corrosion, and hinge failure. This design provides smooth, silent door operation with virtually no maintenance.
- Corrosion-Resistant Stainless Steel: The non-ferrous construction serves as a permanent solution for door edge reinforcement, particularly in high-moisture or coastal environments where rust prevention is critical.
- 3-Hour Fire Rating: The US32D Satin Stainless Steel finish is UL Certified (3-hour) for use on fire-rated door assemblies. This ensures full compliance with stringent life-safety codes. Note: Brass-based hinges are not approved for fire-rated openings.
- Reliable Hardware: Furnished with a non-rising stainless steel pin and button tips to maintain a professional look and prevent the pin from working upward during frequent use.
Technical Details & Specifications
- Brand: McKinney (ASSA ABLOY)
- Model Number: TA2314
- Dimensions: 5" Height x 4.5" Width (Standard Weight .134 Thickness)
- Finish: US32D (630) Satin Stainless Steel
- ANSI Number: A5112 (Stainless Steel)
- Fasteners Included: Furnished with All Wood Screws (1-1/4" x 12 FPHW) and All Machine Screws (1/2" x 12-24 FPHM).
Why Choose the McKinney TA2314?
The McKinney TA2314 is the professional's choice for a dependable and safe solution for door security. Whether you are performing a solution for door surface repair or outfitting a new commercial wing, its precision engineering ensures compatibility and long-term performance. By choosing the US32D Stainless Steel version, you invest in a fire-rated product that guarantees robust performance in critical conditions while maintaining a sleek, modern appearance.
| General - US Finishes | US32D - Satin Stainless Steel/ 630 |
| Brand | McKinney |
| Hinge Height | 5.0" Hi |
| Hinge Width | 4.5" Wi |
| Hinge Grade/Thickness | Standard Wt .119 to .146 |
| Hinge Type | Full Mortise |
| Hinge Options | Ball Bearing |
| Base Material | Stainless Steel |
| Hinge Corners | Square |
