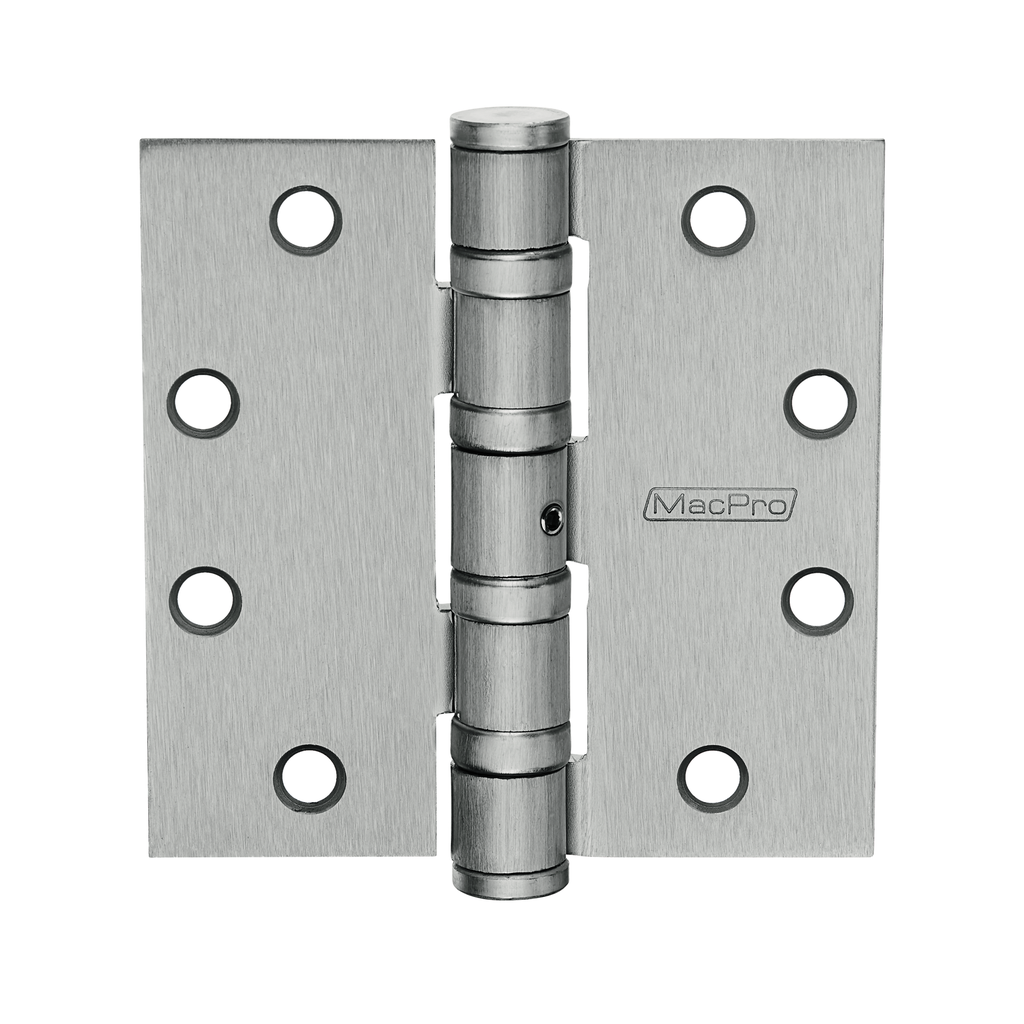

McKinney MacPro MPB68 NRP Heavy Weight Hinge | 4-1/2" x 4-1/2" Satin Chrome
The McKinney MacPro MPB68 NRP is an industrial-strength ball bearing hinge designed for high-traffic openings in commercial construction. Meticulously engineered with a robust .180 gauge thickness, this heavy weight steel hinge is a premier solution for door restoration in demanding environments such as schools, hospitals, and high-frequency public facilities. Its 5-knuckle, full mortise design provides the structural integrity required for heavy-duty doors under constant physical stress.
Maximum Security with NRP (Non-Removable Pin)
The NRP (Non-Removable Pin) feature is a critical security innovation for modern facility management. It utilizes a hidden set screw within the hinge barrel that is completely inaccessible when the door is closed. This provides:
- Tamper-Proof Protection: Prevents unauthorized removal of the door by ensuring the hinge pin cannot be tapped out from the outside.
- Essential for Outward Swinging Doors: A vital solution for commercial door security on exterior-facing doors where the hinge barrel is exposed to the public.
- Security & Peace of Mind: Designed to withstand rigorous tampering attempts, safeguarding against forced entry through hinge manipulation.
Key Performance & Safety Features
- Heavy-Duty Steel Construction: Built specifically to support heavy doors with high-frequency usage, acting as a permanent solution for door edge reinforcement.
- Smooth Ball Bearing Operation: Features high-quality bearings to ensure silent, effortless movement, making it a mandatory choice for doors equipped with automatic door closers.
- UL Fire Rated: Rigorously tested and UL listed (3-hour) for use on fire-rated door assemblies, ensuring full compliance with NFPA 80 and life-safety codes.
- ANSI/BHMA A156.1 Compliant: Corresponds to industry-standard ANSI A8111 (Steel), adhering to recognized benchmarks for structural durability and functional performance.
Technical Details & Specifications
- Brand: McKinney (ASSA ABLOY)
- Model: MacPro MPB68 NRP
- Dimensions: 4-1/2" x 4-1/2" (Heavy Weight .180 Gauge)
- Finish: 626/US26D Satin Chrome Plated
- Fasteners Included: Furnished with all Wood Screws (1-1/4" x 12 FPHW) and all Machine Screws (1/2" x 12-24 FPHM).
- Installation: Constructed with a template screw hole pattern for precision alignment and rapid field replacement.
Why Choose the McKinney MacPro MPB68 NRP?
The McKinney MacPro MPB68 NRP offers exceptional architectural value for high-security projects. Whether you are providing a solution for door surface repair or outfitting a new commercial perimeter, its combination of heavy-duty ball bearings, security set screw, and fire-rated steel ensures your opening remains safe and functional for decades.
| General - US Finishes | US26D - Satin Chrome |
| Brand | McKinney |
| Hinge Height | 4.5" Hi |
| Hinge Width | 4.5" Wi |
| Hinge Grade/Thickness | Heavy Wt .180 to .190 |
| Hinge Type | Full Mortise |
| Hinge Options | Ball Bearing, NRP (Non Removable Pin) |
| Base Material | Steel |
| Hinge Corners | Square |
