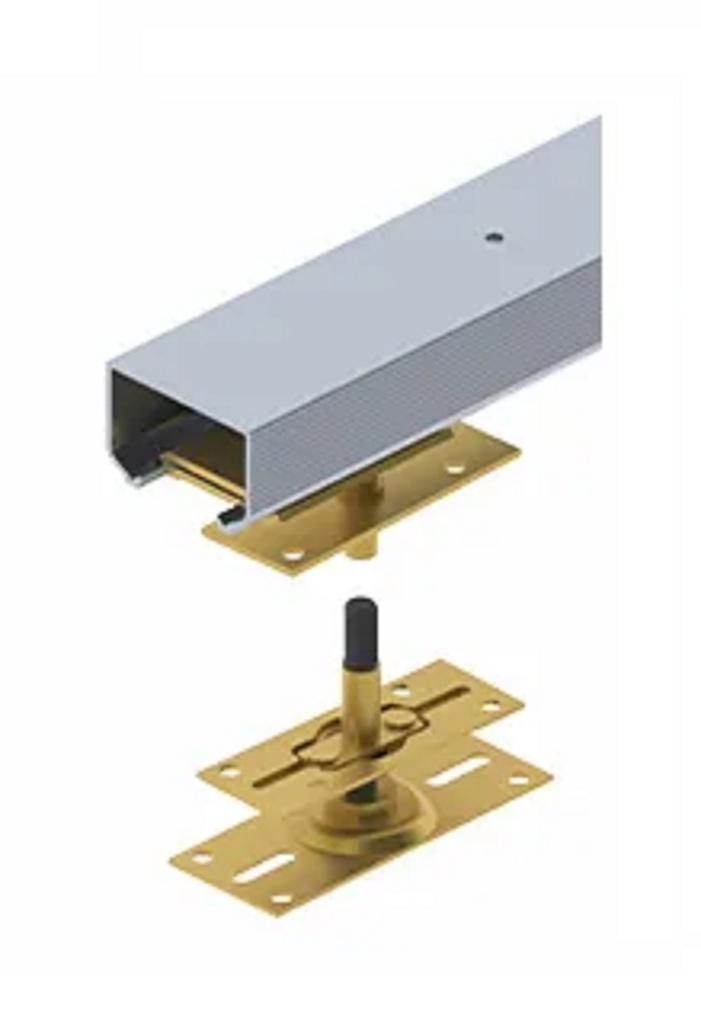

Hager 9570RC Bi-Fold Trackset

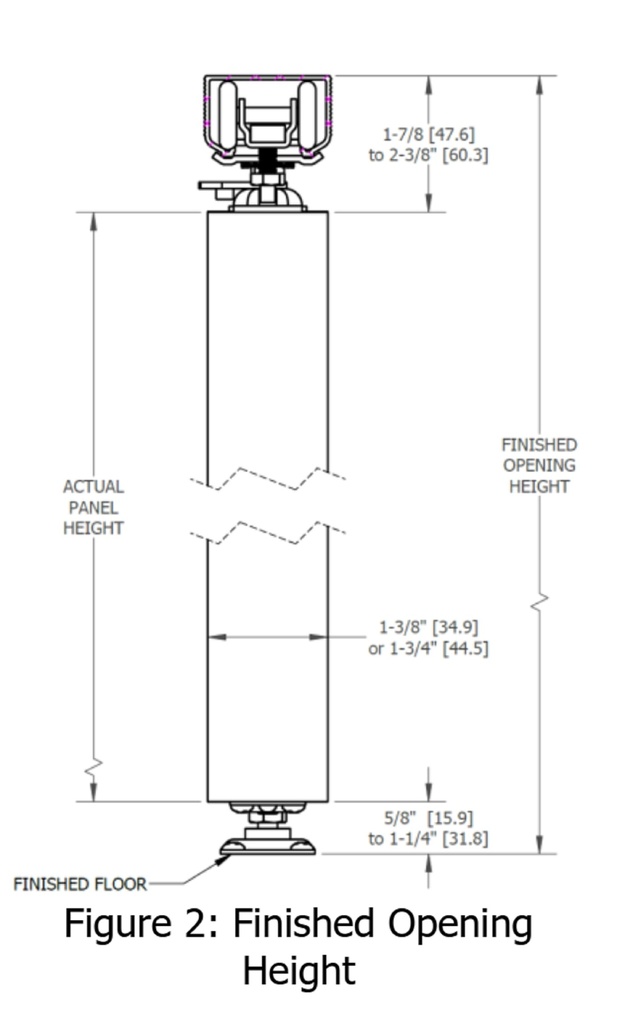

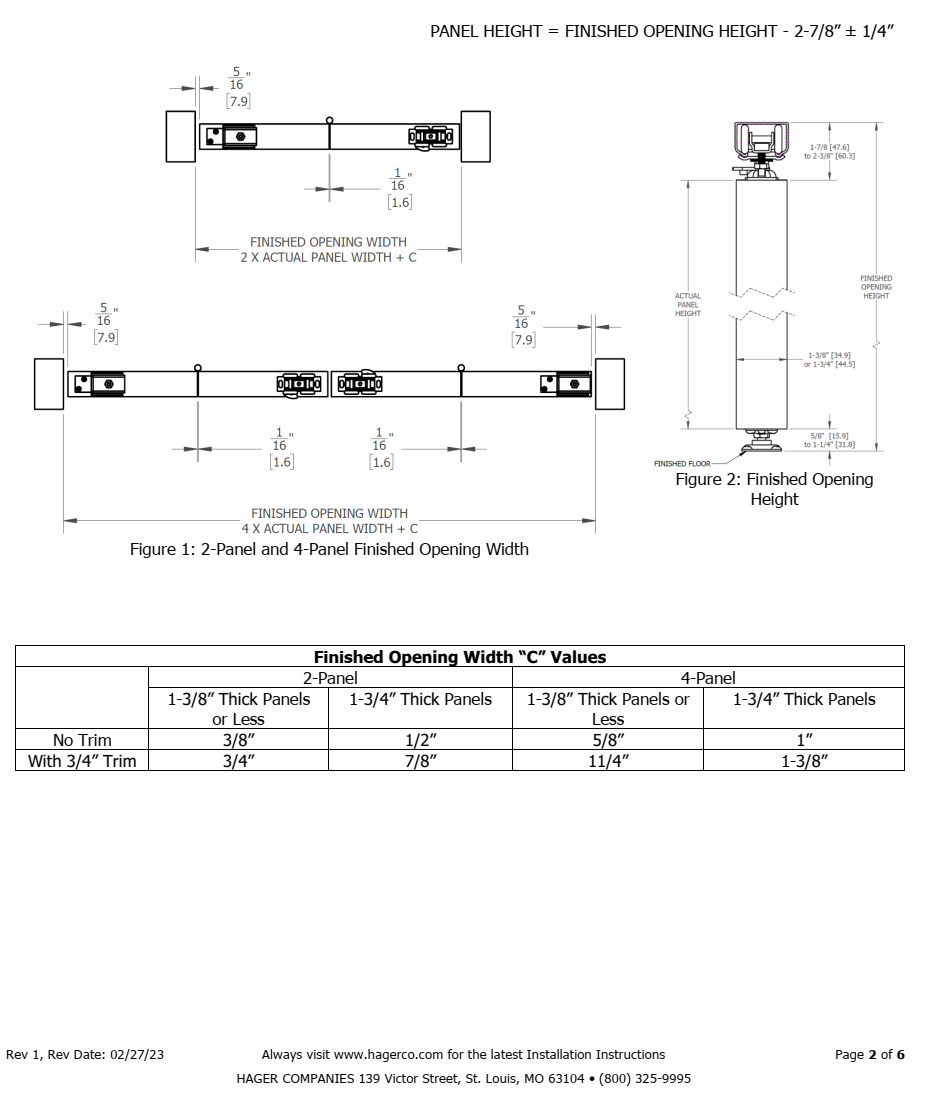

Hager 9570RC Bi-Fold Trackset Sizing Information

Specifications

Applications

  • Commercial
  • Healthcare
  • Hospitality
  • Office
  • Residential

Door Thickness: For doors 1-1/8" (28.6 mm) to 1-3/4" (44 mm) thick

Maximum Door Weight: 125 lbs per panel pair

Notes:

  • Track is extruded aluminum jump-proof style with "V" shaped rails
  • The 9570RC is the equivalent of previous Bi-Fold sets 9570, 9860, 9861, 9890, 9891
  • IMPORTANT: The components between the new and previous version are NON-INTERCHANGEABLE.

Packaged Sets:

  • 9570RC-36 set for two 18" doors - Doors up to 125 lbs (57kg) bi-fold
  • 9570RC-48 set for four 12" doors - Doors up to 125 lbs (57kg) bi-fold
  • 9570RC-60 set for four 15" doors - Doors up to 125 lbs (57kg) bi-fold
  • 9570RC-72 set for four 18" doors - doors up to 125 lbs (57kg) bi-fold
  • 9570RC-96 set for four 24" doors - Doors up to 125 lbs (57kg) bi-fold


Length 36 Inch or 48 Inch or 60 Inch or 72 Inch or 96 Inch
Brand Hager
Trackset Type Bifold
9570RC_I-SD00472-Rev01_Installation Instructions.pdf
