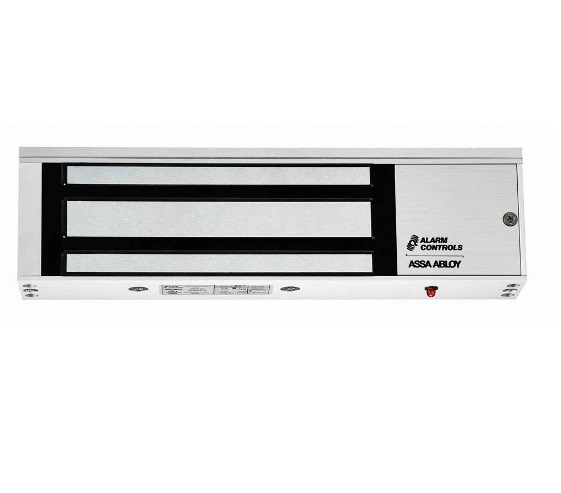

Alarm Controls 1200LB US28 Magnetic Lock, LED, Bond & Door Status Sensor
Alarm Controls 1200LB US28 Single Door Magnetic Lock 1200 lbs L.E.D., Bond Sensor, & Door Status
Alarm Controls 1200LB US28 Single Door Magnetic Lock 1200 lbs LED, Bond Sensor, Door Status
Bracket mounted, single magnetic lock with 1200 lbs holding force that can be easily installed without special tools and used with any access control system. Ideal for high-use areas for traffic control in interior applications.
Standard Features:
1200LB Magnetic lock with LED status indicator, bond sensor, and door status sensor
Built-in arc suppression
Instant release, no hysteresis
Self-drilling TEC screws
Non-aluminum parts are plated to resist corrosion
E-Z mount header bracket and template provided for easy installation, no special tools required
Can be used with any access control system
Clear anodized (US28) finish standard
Limited lifetime warranty
Options:
DURO Duranodic finish (US 40) available, specify when ordering
Dress covers in polished chrome and brass available. See "Magnetic LockAccessories" for options.
Certifications & Listings:
UL 294 listed
UL 10C fire rated
CAN/ULC-S104 fire door conformant
UL 864 listed
CAN/ULC-S527 listed
Holding Force: 1200 lbs
Dimensions:
Magnet size: 10-1/2" L x 2-7/8" H x 1-1/2" W
Armature size: 7-1/4" L x 2-3/8" H x 5/8" W
Electrical:
12 or 24 VDC, field selectable
Current draw: 505 mA at 12 VDC, 260 mA at 24 VDC
1200LB bond sensor has SPDT 3A relay contacts
Operating Temperature: +14F to +131F [-10C to +55C]
| Brand | Alarm Controls |
| Minimum Holding Force | 1200 lbs. |
| Mag Lock Type | Single Door Magnetic Lock |
| Voltage | 12 VDC, 24 VDC |
| Magnetic Lock Options | LED, Bond Sensor, Door Status |
