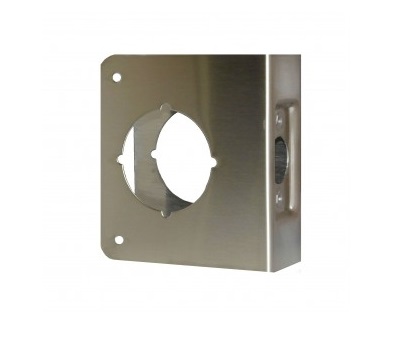

Don-Jo 81-CW Stainless Steel Wrap-Around Plate | Compact 1-3/4" Door Reinforcer (2-3/4" Backset)

The Don-Jo 81-CW Stainless Steel Wrap-Around Plate is a high-security hardware essential designed for targeted reinforcement of standard commercial and industrial doors. Measuring 4-1/4" wide x 4-1/2" high, this door reinforcer is specifically engineered for 1-3/4" thick doors using the industry-standard 2-3/4" backset. It is the premier solution for door surface repair, providing a rigid steel foundation that restores structural integrity to doors with cracked, splintered, or weakened lock preps.

Precision-manufactured with a 2-1/8" hole prep, the 81-CW wraps around the door edge to "sandwich" the latch area in heavy-gauge steel. This creates a high-impact barrier that serves as a critical solution for commercial door security, preventing the door from splitting during a forced entry attempt or under the daily stress of high-frequency use.

Key Features & Performance

• Commercial 1-3/4" Fit: Precision-fit for the standard thickness of commercial hollow metal and solid-core wood doors, ensuring a flush and secure installation.

• Standard 2-3/4" Backset: Features a factory-punched 2-1/8" bore positioned exactly 2-3/4" from the door edge, making it a "drop-in" solution for most commercial Grade 1 and Grade 2 lever sets.

• Concentrated Reinforcement: The 4-1/4" x 4-1/2" profile provides maximum strength at the lock's mounting point without the footprint of a full-length plate, acting as an efficient solution for door edge reinforcement.
• Premium 630 Stainless Steel: Manufactured from US32D / 630 Satin Stainless Steel, offering industrial-grade corrosion resistance and a modern, brushed finish that coordinates with architectural hardware.

• Professional Restoration: Functions as a durable remodeling scar plate, hiding finish wear, small cracks, and imperfections around the lock prep for a polished, factory-clean appearance.

Technical Details & Specifications

• Brand: Don-Jo
• Model Number: 81-CW
• Overall Size: 4-1/4" Width x 4-1/2" Height

• Door Thickness: 1-3/4"
• Backset: 2-3/4"
• Hole Prep: 2-1/8" Standard Cylindrical
• Material: Heavy-Duty Stainless Steel
• Finish: US32D/630 (Satin Stainless Steel)
• Installation: Includes all necessary mounting fasteners. For maximum stability in high-traffic areas, the lockset's own mounting screws or thru bolts secure the assembly firmly to the door leaf.


Why Choose the Don-Jo 81-CW?

The Don-Jo 81-CW is the professional's choice for "saving" a door rather than replacing it. When a commercial door becomes weakened due to hardware failure or attempted break-ins, this stainless steel wrap plate restores the opening to better-than-factory strength. It is a cost-effective and permanent solution for door restoration, delivering the industrial-strength security and polished appearance required for retail, office, and municipal facilities.

​
