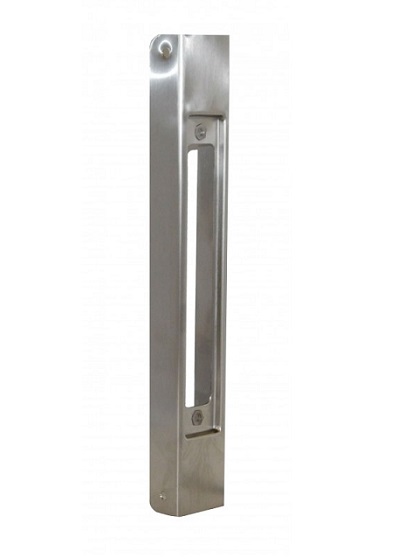

Don-Jo 504-FE Stainless Steel Edge Guard | 12" Mortise Lock Door Reinforcer

The Don-Jo 504-FE Stainless Steel Edge Guard Plate is a high-security architectural solution designed to protect and reinforce the critical locking edge of commercial doors. Measuring 12" high x 1" deep, this heavy-duty door edge guard is specifically engineered for 1-3/4" thick doors equipped with a mortise lockset. It provides a rigid steel barrier that prevents the door from splintering or spreading, making it the premier solution for door edge reinforcement in high-traffic environments like schools, hospitals, and office complexes.

Featuring a standard 8" mortise lock edge prep, the 504-FE is designed to fit seamlessly around the faceplate of your existing mortise hardware. This extended 12-inch plate acts as a superior solution for door restoration, covering unsightly "ghosting," wood splitting, or structural damage often found in aging or compromised commercial entryways.

Key Features & Performance

• Mortise Lock Optimized: Precision-prepped for a standard 8" mortise lock edge, ensuring the latch and deadbolt function perfectly while the surrounding door material is fully protected.
• 1-3/4" Commercial Fit: Tailor-made for the standard thickness of commercial hollow metal and solid-core wood doors, providing a flush, professional mount.
• Extended 12-Inch Protection: The oversized height distributes stress across a larger area of the door leaf, acting as a high-performance remodeling scar plate that hides major imperfections.
• Premium 630 Stainless Steel: Manufactured from US32D / 630 Satin Stainless Steel, offering industrial-grade corrosion resistance and a modern, brushed finish that coordinates with Grade 1 architectural hardware.

• Enhanced Door Security: Provides a permanent solution for commercial door security by shielding the door's core from prying tools and preventing "kick-in" failures at the mortise pocket.

Technical Details & Specifications

• Brand: Don-Jo
• Model Number: 504-FE
• Overall Size: 12" Height x 1" Depth
• Edge Prep: Standard 8" Mortise Cutout

• Door Thickness: 1-3/4"
• Material: Heavy-Gauge Stainless Steel
• Finish: US32D/630 (Satin Stainless Steel)
• Installation: Includes all necessary stainless steel mounting fasteners. For total structural integrity, the mortise lock's own thru bolts and mounting screws integrate with the plate to secure the assembly to the door.

Why Choose the Don-Jo 504-FE?

The Don-Jo 504-FE is the industry-standard "problem solver" for facility managers. Mortise lock pockets inherently weaken the door's edge; this stainless steel edge guard restores that lost strength without the exorbitant cost of a full door replacement. It is a cost-effective and permanent solution for door restoration, delivering the industrial-strength security and polished aesthetic required for high-security municipal and commercial facilities.

​
