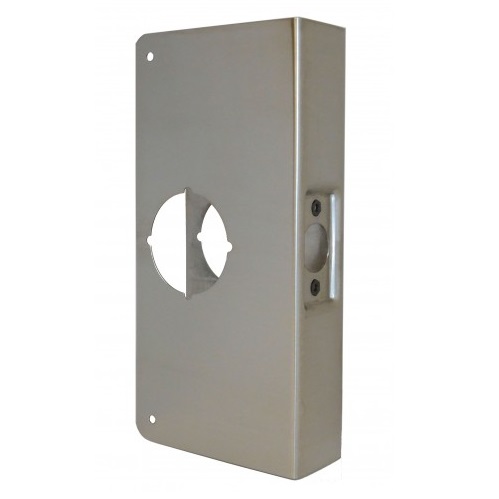

Don-Jo 2-CW Stainless Steel Wrap-Around Plate | 1-3/4" Commercial Door Reinforcer

The Don-Jo 2-CW Stainless Steel Wrap-Around Plate is an essential security component designed to provide maximum reinforcement for standard commercial and residential entryways. Measuring 4" wide x 9" high, this heavy-duty door wrap-around plate is engineered for 1-3/4" thick doors, offering 360-degree protection by "sandwiching" the lock area in industrial-grade steel. It is the premier solution for door surface repair, designed to conceal "ghosting," splintering, or unsightly mounting marks left behind by previous hardware.

This model is precision-prepped with a 2-1/8" hole for standard cylindrical locks and is optimized for a 2-3/4" backset. By reinforcing the most vulnerable point of the door, the 2-CW serves as a critical solution for commercial door security, preventing the door from splitting during a forced entry or "kick-in" attempt.

Key Features & Performance

• Commercial 1-3/4" Fit: Specifically designed for the standard thickness of commercial hollow metal and solid core wood doors, ensuring a flush and secure installation.
• Standard 2-3/4" Backset: Features a factory-punched 2-1/8" bore positioned exactly 2-3/4" from the door edge, making it a "drop-in" solution for the most common commercial lock configurations.
• Professional Restoration: Acts as an architectural remodeling scar plate, hiding oversized holes, finish wear, or structural damage for a clean, factory-finished look.
• Premium 630 Stainless Steel: Manufactured from US32D / 630 Satin Stainless Steel, providing superior corrosion resistance and a modern aesthetic that coordinates with high-end architectural trim.
• Structural Reinforcement: Strengthens the door leaf to prevent hardware from loosening over time and provides a permanent solution for door edge reinforcement in high-traffic environments.


Technical Details & Specifications

• Brand: Don-Jo
• Model Number: 2-CW
• Overall Size: 4" Width x 9" Height
• Door Thickness: 1-3/4"
• Backset: 2-3/4"
• Hole Prep: 2-1/8" Standard Cylindrical
• Material: Heavy-Gauge Stainless Steel
• Finish: US32D/630 (Satin Stainless Steel)
• Installation: Includes all necessary mounting fasteners. For high-security applications, the lockset's own thru bolts or mounting screws pass through the plate to create a rigid, tamper-resistant bond.

Why Choose the Don-Jo 2-CW?

The Don-Jo 2-CW is the industry-standard "problem solver" for facility managers and locksmiths. When a door becomes weakened due to hardware failure or attempted break-ins, this stainless steel wrap plate restores the opening to better-than-factory strength. It is a cost-effective and permanent solution for door restoration, delivering the industrial-strength security and polished appearance required for retail, office, and municipal facilities.

​
