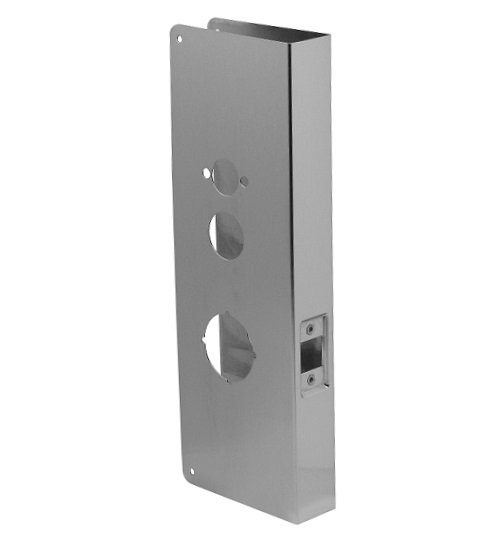

Don-Jo 15-CW Stainless Steel Wrap-Around Plate | 15" Simplex L1000 Series Reinforcer
The Don-Jo 15-CW Stainless Steel Wrap-Around Plate is an extra-long, high-security reinforcement solution specifically engineered for the Kaba Simplex 1000 and L1000 Series Pushbutton Locksets. Measuring a substantial 5" x 15", this heavy-duty door wrap-around plate is designed to provide maximum structural integrity for doors equipped with mechanical access control. It serves as the ultimate solution for door surface repair, allowing facility managers to conceal extensive damage, old mounting holes, or "ghosting" while providing a rock-solid foundation for DormaKaba hardware.
Tailored for 1-3/4" thick doors, the 15-CW features precision-punched mounting locations that align perfectly with the Simplex L1000 series footprint. With a 2-3/4" backset prep, this plate ensures your keyless entry system is encased in a rigid, stainless steel "sandwich" that prevents door splitting and protects against forced entry.
Key Features & Performance
- DormaKaba Simplex Optimized: Custom-prepped to match the unique mounting points of Simplex 1000 and L1000 Series pushbutton locks, eliminating the need for complex field modifications.
- Extended 15-Inch Coverage: The oversized height acts as a massive remodeling scar plate, hiding years of hardware transitions and structural scars far above and below the lock chassis.
- 360-Degree Reinforcement: Envelopes the door edge and both faces to provide a high-impact solution for commercial door security and anti-pry protection.
- Premium 630 Stainless Steel: Manufactured from US32D / 630 Satin Stainless Steel, offering industrial-grade corrosion resistance and a professional finish that matches high-end architectural trim.
- Heavy-Duty Structural Support: Distributes the operational torque of the pushbutton mechanism across a wide steel surface, significantly extending the life of the door leaf in high-traffic environments.
Technical Details & Specifications
- Brand: Don-Jo
- Model Number: 15-CW
- Overall Size: 5" Width x 15" Height
- Door Thickness: 1-3/4"
- Backset: 2-3/4"
- Compatibility: Kaba Simplex 1000 / L1000 Series
- Material: Stainless Steel
- Finish: US32D/630 (Satin Stainless Steel)
- Installation: Includes all necessary mounting fasteners. For maximum stability, the lockset's own thru bolts pass directly through the plate to secure the assembly permanently to the door.
Why Choose the Don-Jo 15-CW?
The Don-Jo 15-CW is a critical "problem-solver" for locksmiths and facility managers maintaining mechanical pushbutton access systems. When a door becomes weakened or unsightly due to repeated hardware use or past damage, this stainless steel wrap plate restores the opening to better-than-factory strength. It is a cost-effective and permanent solution for door restoration, providing the industrial-strength security and polished appearance required for modern commercial facilities.
| Brand | Don-Jo |
| General - US Finishes | US32D - Satin Stainless Steel/ 630 |
| Door Thickness | 1-3/4" Dr Thickness |
| Backset | 2-3/4" Backset |
| Series | DormaKaba - L1000 Series, DormaKaba - 1000 Series |
| Height | 15 Inch |
| Lock Type | Kaba L1000/1000 Series, Cylindrical Lock |
