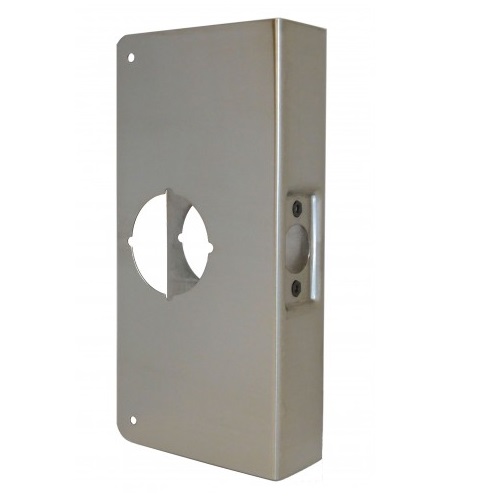

Don-Jo 12-CW Stainless Steel Wrap-Around Plate | 4-1/4" x 12" Heavy-Duty Reinforcer

The Don-Jo 12-CW Stainless Steel Wrap-Around Plate is an extra-long, commercial-grade security component designed to provide maximum reinforcement and surface restoration for high-traffic entryways. Measuring a substantial 12 inches in height, this door wrap-around plate is engineered to protect the door edge and faces from forced entry, while simultaneously concealing extensive damage, previous hardware footprints, or "ghosting." It is the ultimate solution for door surface repair, allowing you to bypass the high cost of door replacement by structurally reinforcing the lock area.

Specifically designed for 1-3/4" thick doors, the 12-CW features a precision 2-1/8" hole prep set at a 2-3/4" backset. Its extended length makes it the ideal choice for doors that have suffered significant splintering or have multiple abandoned mounting holes from legacy hardware.

Key Features & Performance

• Maximum Reinforcement: The 4-1/4" x 12" profile provides 360-degree structural integrity, "sandwiching" the door to prevent prying, splitting, and latch bypassing.
• Extended Coverage: The 12-inch height acts as an oversized remodeling scar plate, effectively hiding damage far above and below the lockset for a clean, professional finish.
• Premium 630 Stainless Steel: Manufactured from US32D / 630 Satin Stainless Steel, offering industrial-strength durability and superior corrosion resistance that matches standard commercial architectural trim.
• Standard Cylindrical Prep: Includes a factory-punched 2-1/8" bore, making it ready for the immediate installation of commercial levers, knobs, or deadbolts.

• Commercial-Grade Security: Frequently utilized in schools, hospitals, and retail environments as a high-impact solution for commercial door security.

Technical Details & Specifications

• Brand: Don-Jo
• Model Number: 12-CW
• Overall Size: 4-1/4" Width x 12" Height

• Door Thickness: 1-3/4"
• Backset: 2-3/4"
• Hole Prep: 2-1/8" (Standard Cylindrical)

• Material: Stainless Steel
• Finish: US32D/630 (Satin Stainless Steel)
• Mounting: Includes specialized fasteners. For maximum stability and anti-pry protection, the hardware is secured using thru bolts that pass through both the plate and the door.

Why Choose the Don-Jo 12-CW?

The Don-Jo 12-CW is a heavy-duty "problem solver" for facilities undergoing hardware transitions or repairing compromised openings. When a door is damaged due to a break-in or wear and tear, this stainless steel wrap plate restores its strength to better-than-factory condition. It is an essential commercial hardware restoration tool that ensures your new cylindrical lockset has a rigid, secure, and aesthetically pleasing foundation. By choosing the 12-CW, you invest in a permanent, industrial-strength solution for door edge reinforcement.

​
