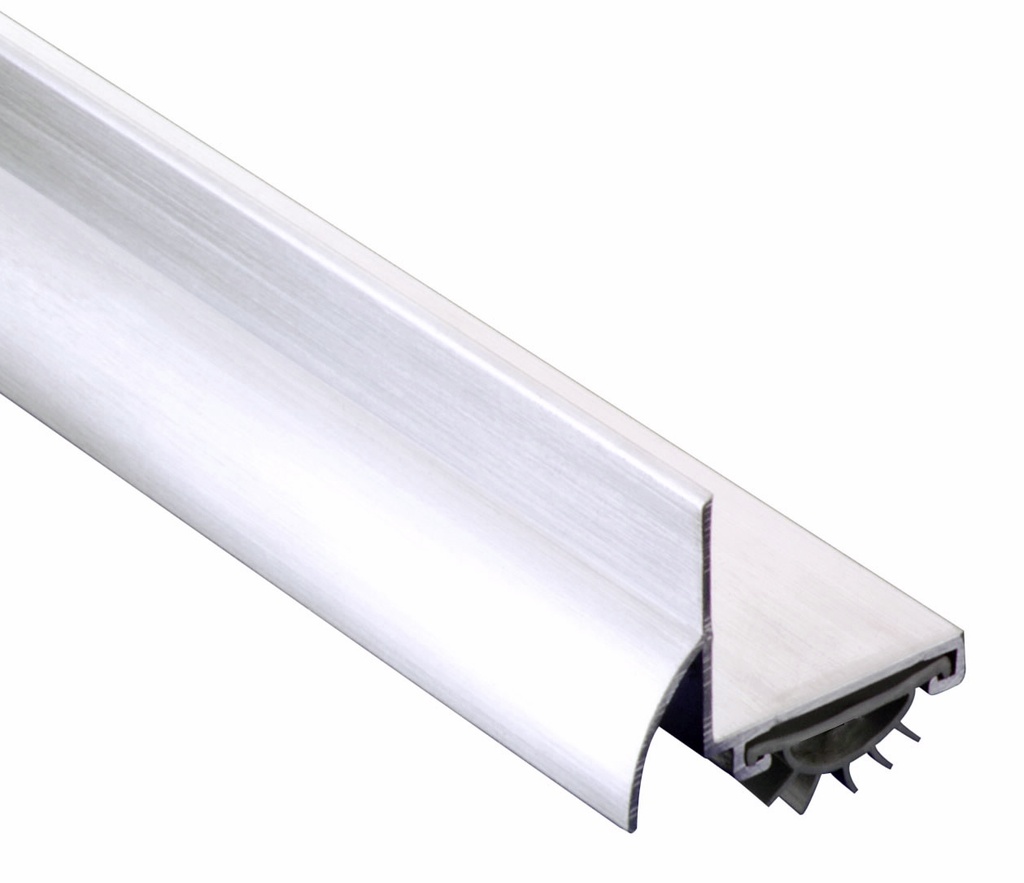

Pemko 210AV 36" Door Bottom Shoe with Rain Drip - Mill Aluminum
The Pemko 210AV is a high-performance Door Bottom Shoe and Rain Drip combination designed to provide a comprehensive weather seal and moisture protection for commercial doors. Constructed from durable mill-finish aluminum, this "U-shaped" shoe wraps around the bottom of the door, protecting the wood or metal core while the integrated rain drip flange deflects water away from the opening. Equipped with a premium Eco-V (V) vinyl fingered insert, the 210AV blocks drafts, light, and smoke with exceptional flexibility.
High-Performance & Weatherproofing Features
- Integrated Rain Drip: The exterior flange is specifically engineered to shed rainwater away from the threshold, preventing moisture from seeping under the door during heavy storms.
- Eco-V Fingered Insert: Features multiple flexible "fingers" that create a multi-stage seal against uneven floor surfaces. This Eco-V material operates effectively between -4° F and +122° F.
- Smoke & Fire Certified: Rigorously tested to UL 1784 for smoke leakage and UL 10C for positive pressure, making it a critical safety component for fire-rated commercial openings.
- Adjustable Mounting: Retainers are punched with elongated slotted holes, allowing for precise vertical adjustment during installation to ensure a perfect seal against the floor.
- Health & Sustainability: GREENGUARD Gold Certified for low chemical emissions, ensuring it meets strict standards for indoor air quality.
Technical Specifications
- Manufacturer: Pemko (ASSA ABLOY)
- Model Number: 210AV
- Finish: Mill Aluminum (A)
- Insert Material: Eco-V Gray Vinyl (V)
- Required Door Clearance: For optimal operation, maintain a 1/2" clearance from the floor or threshold.
- Standard Lengths: 36" (Furnished net length; field trimming required).
- Certifications: BHMA Certified (ANSI/BHMA A156.22), UL Listed, ANSI: R3D514.
| Length | 36 Inch |
| Brand | Pemko |
| Insert Material | Vinyl |
| Bottom Weatherseal Type | Door Bottom w/ Rain Drip |
| Fire Rated | Fire Rated |
| Smoke Rated | Smoke Rated |
| Material Length | 1/2" |
| Housing Finish | Aluminum |
| Sweeps, Door Bottom or Rain Drip | Door Bottom |
