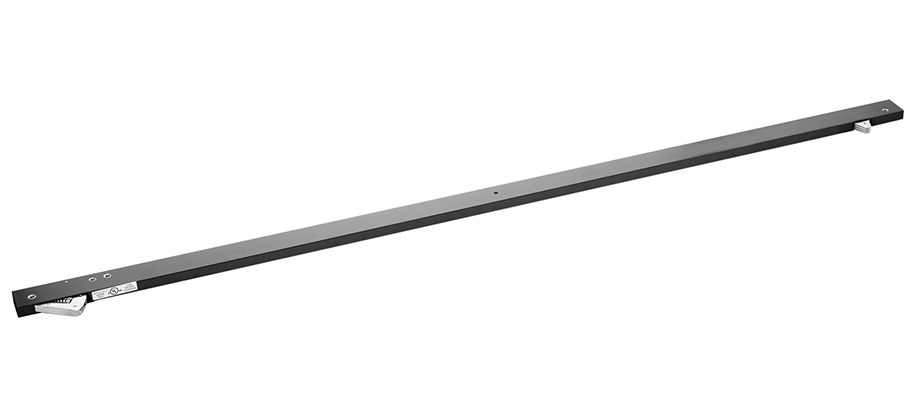

Rockwood 2696 Soffit Mounted Door Coordinator | 96" Openings

The Rockwood 2696 Door Coordinator is a critical life-safety component designed for large-scale pairs of doors where a specific closing sequence is required—typically an active leaf with an astragal. Specifically engineered for 96-inch door openings, this soffit-mounted device ensures the inactive leaf is fully seated before the active leaf closes. Crafted from heavy-duty steel with a Black Prime Coat, it provides a low-profile, architectural look that can be painted to match your door frame perfectly.

Precision Fire Safety & Large Opening Protection

• Automatic Sequence Control: Ensures that the inactive door leaf closes first, allowing the active leaf to latch securely. This is vital for maintaining the integrity of fire-rated openings and smoke seals in wide corridors.
• Integrated Override Protection: Features a built-in safety mechanism that prevents damage to the coordinator or the doors if the active leaf is forced to close before the inactive leaf.

• Non-Handed Universal Design: The non-handed configuration allows for installation on any door swing, providing maximum flexibility for oversized openings in hospitals, schools, and warehouses.

• ANSI/BHMA Certified: Meets ANSI A156.3 Type 21 standards, guaranteeing the long-term durability required for high-traffic institutional use.


Technical Specifications

• Model: Rockwood 2696
• Application: 96" Wide Jamb Openings
• Material: Heavy-Duty Steel
• Finish: Black Prime Coat (BPC)
• Dimensions: 5/8" W x 1-5/8" H x 52" L (Device length)
• Fasteners: Includes 7 ea. #12-24 x 1-1/4" Type C tapping screws.

​
