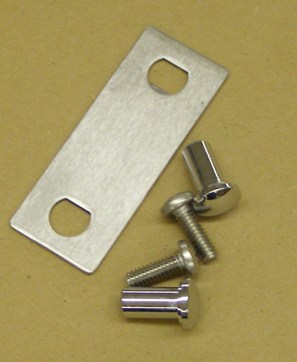

Bobrick 2583 Grab Bar Mounting Kit | Stainless Steel Thru Bolt Fastener Set

The Bobrick 2583 Grab Bar Mounting Kit is a high-security, professional-grade fastener set specifically engineered for installing grab bars onto 3/4" to 1" thick toilet partition panels. This kit is the definitive solution for door restoration and safety upgrades, providing the structural reinforcement necessary to meet ADA load requirements in commercial restrooms. Designed to work seamlessly with Bobrick B5806 or B6806 series grab bars, it ensures a permanent, rattle-free installation that can withstand heavy daily use.

Constructed from premium stainless steel, the 2583 mounting kit is a critical solution for door security and user safety. Unlike standard wood screws or anchors, this kit utilizes a "sandwich" mounting method with thru bolts, which prevents the grab bar from pulling out of the partition material under stress. This makes it an essential component for any solution for door surface repair, as the back-to-back mounting hardware effectively distributes weight across the panel, protecting the integrity of the partition.

Key Features & Performance

• Maximum Structural Reinforcement: Uses a thru-bolt design to provide a high-torque, "unbreakable" connection, acting as a permanent solution for door edge reinforcement.
• Premium Stainless Steel: All machine screws and fasteners are made from corrosion-resistant stainless steel, ensuring a long life in high-moisture restroom environments.
• Universal Partition Fit: Optimized for the standard 3/4" to 1" thickness found in most metal, stainless steel, and solid plastic partition systems.
• Tamper-Proof Security: The heavy-duty hardware design prevents unauthorized removal or vandalism, making it a reliable solution for commercial door security.
• Bobrick Series Compatibility: Precision-engineered to fit the flange patterns of Bobrick B-5806 and B-6806 grab bars.

Technical Details & Specifications

• Brand: Bobrick
• Model Number: 2583
• Part Type: Grab Bar Mounting Kit (For Partitions)
• Material: Grade 304 Stainless Steel
• Panel Thickness Range: 3/4" to 1" (19mm to 25mm)
• Fastener Style: Stainless Steel Machine Screws with Matching Thru Bolts
• Ordering Note: Each kit contains the hardware for one flange. Standard grab bar installations typically require two kits (one for each end).
