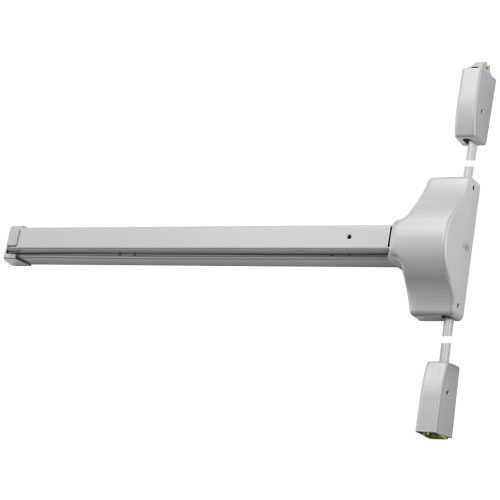

Accentra 1810F Surface Vertical Rod Exit Device 36" or 48" wide x 84" Height Door, Fire Rated, Exit Only
The 1810(F) is a surface vertical rod exit device to be used on metal, wood or composite pairs of doors up to 8' where two-point latching is desired.
- When "F" is added to the 1810 part number it stands for a 3 hour Fire-Rated Exit Device
Certification/Compliance:
- UL/cUL Listed- FVSR/FVSR7 - Panic hardware- GXHX/GXHX7 - Fire exit hardware (F) (8' x 8' pairs, 3 hr.)- ANSI/BHMA Certified: A156.3 Type 2, Grade 1
Applications:
- Pairs of doors
- Double egress
- Metal, wood or composite door materials
Features:
- Designed for wide stile and flush doors
- Handed, specify hand (field reversible)
- Positive action linkage on a deadlocking top
- Pullman bolt
- Simultaneous direct pull bottom deadbolt
- When unlatched, device keeps both bolts retracted until door is shut.
Specifications:
- Door Opening Width: -36 for 30" - 36" (76cm - 91cm) doors
- Door Opening Height: Standard door height 7' (213cm), with the device centerline at 39-15/16" (101cm) from floor
- Optional heights up to 8' (244cm) by using rod extensions
- Door Thickness: 1-3/4" (44mm) standard. Refer to page 10 for other door thicknesses
- Minimum Stile Width: 4-1/2" (114mm)
- Projection: 2-1/2" (64mm) active, 1-3/4" (44mm) depressed
- Strike: Top: Roller type 791. Bottom: Flush mounted 790
- Trims: 210F series utility trim, 420F series escutcheon trim, 440F series rose trim
- Dogging: Hex key dogging supplied standard on panic devices
- Finishes: 689
- Options: Shim Kit #224, Sex Nuts and Bolts, Bottom Pullman Latch (panic only)
- Warranty: 1-year limited
| General - US Finishes | 689 - Spray Alumimun or 695 - Spray Stat Bronze |
| Door Opening Width | 36 Inches or 48 Inches |
| Brand | Accentra (formally Yale Security) |
| Exit Device Type | SVR Exit Device |
| Series | Accentra - 1800 Series |
| Fire Rated | Fire Rated |
| Door Height | 7'0" Dr Ht |
