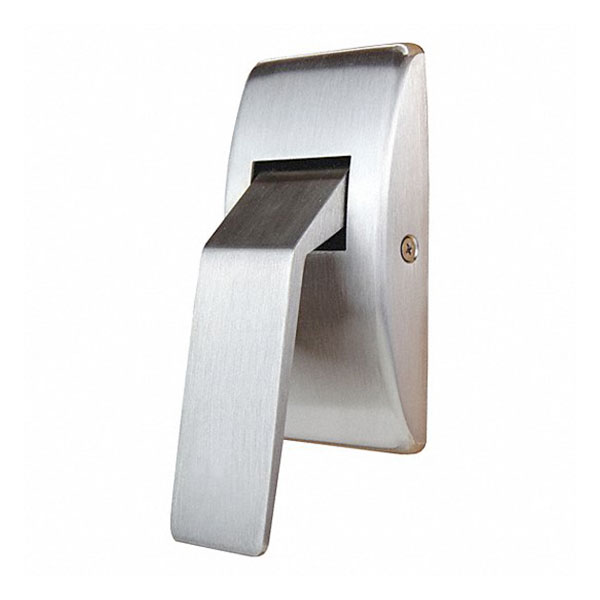

ABH 6817Q Low Profile Quiet Push/Pull Latchset | Satin Stainless Steel

The ABH 6817Q is a high-performance low profile quiet push/pull latchset designed specifically for Right Hand (RH) door applications in environments requiring absolute silence. Engineered as the ultimate solution for commercial door convenience, this "Quiet Hospital Latch" features a specialized Push Up / Pull Down handle orientation. By incorporating a patented linear acting cam, the 6817Q achieves zero decibel ambient noise gain, making it the definitive choice for healthcare facilities, professional quiet zones, and luxury office suites where acoustic excellence is required.

Silent Performance for Healthcare & High-End Offices

In facilities where sound control is vital for patient recovery or professional focus, the ABH 6817Q sets the standard for whisper-quiet operation:

• Zero-Decibel Quiet Technology: The "Q" series is the industry benchmark for noise-sensitive zones. It provides a permanent solution for door restoration by replacing standard, clacking hardware with a dampened mechanism that eliminates mechanical noise during latching.
• Intuitive Push Up / Pull Down Action: This specific 6817Q configuration is optimized for Right Hand doors, offering a unique Push Up movement on one side and a Pull Down on the other. This allows for seamless, hands-free operation—a critical solution for door surface repair and hygiene maintenance in medical settings.

• Patented Linear Acting Cam: Featuring a high-efficiency internal cam (Patent #7,258,374), this latchset provides a fluid, frictionless motion that is significantly smoother than traditional pivoting mechanisms.

• ADA Compliant Accessibility: Engineered to require less than 5 lbs of force for activation, ensuring your facility remains fully accessible and in compliance with all ADA requirements.

Engineered for Heavy-Duty Stability

The ABH 6817Q is a Grade 1 architectural component built to withstand the rigorous duty cycles of 24/7 institutions:

• Four Thru-Bolt Mounting: To prevent sagging or loosening over time, the trim is mounted using four thru bolts. This heavy-duty "sandwich" installation provides maximum stability and serves as a robust solution for door edge reinforcement.

• Architectural Satin Stainless Steel: Finished in US32D (630), the 6817Q is naturally corrosion-resistant, easy to sanitize, and maintains a premium appearance in both clinical and executive environments.

• Field-Reversible Flexibility: While specifically handed for Right Hand openings, the internal cam holder assembly is field-reversible, providing a versatile solution for door restoration should door functions change during a renovation.

• UL Fire Rated: UL Listed for use on fire-rated doors (up to 90 minutes), ensuring that life safety standards are maintained in all corridor and patient room openings.


Technical Details & Specifications

• Brand: ABH Manufacturing
• Model: 6817Q (Quiet Series)

• Handing: Right Hand (RH)
• Operation: Push Up / Pull Down
• Finish: US32D / 630 (Satin Stainless Steel)

• Standard Door Thickness: 1-3/4” (Specify if different)

• Mounting: Four-Bolt Thru-Bolt Design

• Certifications: ANSI/BHMA Grade 1, ADA Compliant, UL Listed


Why Choose the ABH 6817Q?

When upgrading a facility to meet modern standards of silence and durability, the ABH 6817Q is the highest-performing choice. Its combination of a low profile aesthetic and heavy-duty thru-bolt stability makes it a permanent solution for door restoration. Whether outfitting a private surgical wing or a high-end corporate library, this latchset ensures a quiet, professional, and compliant opening every time.
