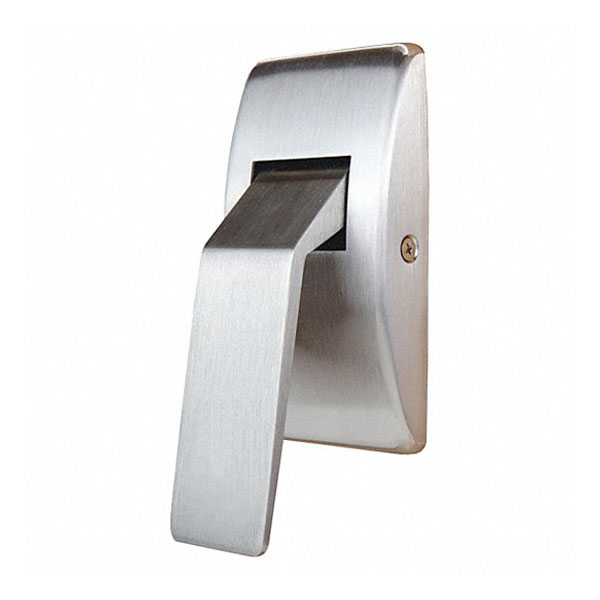

ABH 6816 Low Profile Push/Pull Latchset | Satin Stainless Steel

The ABH 6816 is a heavy-duty low profile push/pull latchset designed specifically for Right Hand (RH) door applications in high-traffic commercial and institutional settings. Engineered for maximum durability and ease of use, the 6816 model is a premier solution for door restoration in healthcare facilities, schools, and government buildings. Featuring a specialized Push Down / Pull Up handle orientation, this latchset provides a sleek architectural look while serving as a robust solution for commercial door convenience and universal accessibility.

Specialized Ergonomics for Healthcare & High-Traffic Use

The ABH 6816 is designed to facilitate effortless door transitions in fast-paced environments where hands-free access is a necessity:

• Intuitive Push Down / Pull Up Action: This specific configuration is optimized for Right Hand doors, allowing users to activate the latch with a downward motion on one side and an upward pull on the other. This is an ideal solution for door surface repair in medical environments where staff frequently use elbows or hips to open doors while transporting equipment.

• Low Profile Architectural Footprint: With a slim cover projection of only 7/8" and a handle projection of 2-5/8", the 6816 minimizes the footprint on the door face. This significantly reduces the risk of the hardware catching on passing hospital stretchers, equipment carts, or pedestrians.
• ADA Compliant Accessibility: Engineered to require less than 5 lbs of force for operation, ensuring the opening remains fully accessible and in total compliance with ADA requirements.
• Patented Linear Acting Cam: Features a high-efficiency internal cam (Patent #7,258,374) that provides a smoother, more fluid motion than traditional pivot-style latches, reducing mechanical friction and user effort.


Industrial Stability with Thru-Bolt Engineering

The ABH 6816 is a Grade 1 architectural component built to withstand millions of cycles in the most demanding 24/7 institutions:

• Four Thru-Bolt Mounting: To prevent sagging, wobbling, or hardware failure over time, the trim is mounted using four thru bolts. This creates a high-strength "sandwich" connection through the door, serving as a permanent solution for door edge reinforcement.

• Architectural Satin Stainless Steel: Finished in US32D (630), this unit is naturally corrosion-resistant and withstands the aggressive disinfectants used in medical environments while maintaining its premium appearance.

• Field-Reversible Flexibility: While specifically handed for precision at the time of order, the internal cam holder assembly is field-reversible, offering a flexible solution for door restoration if room functions change.

• UL Fire Rated Protection: UL Listed for use on fire-rated doors (up to 90 minutes), ensuring your facility meets the highest standards for life safety and fire code compliance.


Technical Details & Specifications

• Brand: ABH Manufacturing
• Model: 6816 (Low Profile Series)

• Handing: Right Hand (RH)
• Operation: Push Down / Pull Up
• Finish: US32D / 630 (Satin Stainless Steel)
• Standard Door Thickness: 1-3/4” (Custom thicknesses available)
• Mounting: Four-Bolt Thru-Bolt Design
• Certifications: ANSI/BHMA Grade 1, ADA Compliant, UL Listed

Why Choose the ABH 6816?

For facilities that require the rugged durability of a hospital-grade latch with a modern, low-profile aesthetic, the ABH 6816 is the definitive choice. Its heavy-duty thru-bolt stability and ergonomic Push Down / Pull Up movement make it a reliable, long-term solution for door restoration. By combining ease of access with superior mechanical integrity, the 6816 ensures that your high-traffic commercial doors remain secure, compliant, and effortless to operate.
