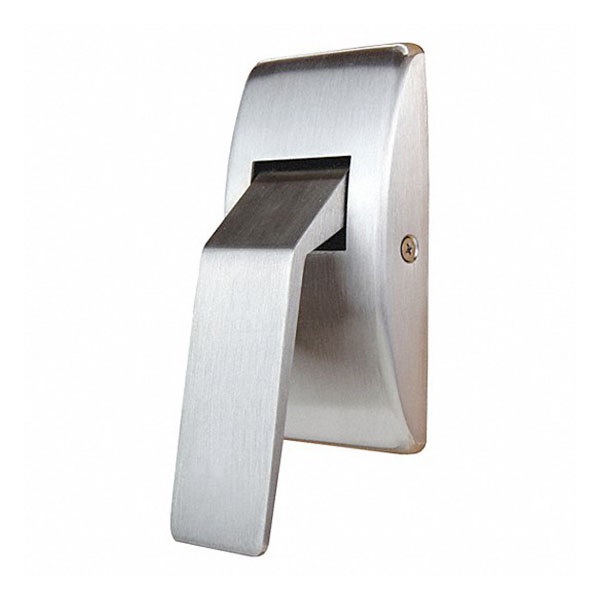

ABH 6814Q Low Profile Quiet Push/Pull Latchset | Satin Stainless Steel

The ABH 6814Q is the ultimate solution for commercial door convenience in environments where silence and hands-free accessibility are non-negotiable. Engineered specifically for healthcare facilities, quiet zones, and high-end commercial offices, this low profile quiet push/pull latchset features a specialized Push Down / Pull Down handle orientation. By utilizing a patented linear acting cam, the 6814Q eliminates the jarring mechanical noise typical of standard hospital hardware, achieving zero decibel ambient noise gain for a truly whisper-quiet opening.

The Premier Silent Solution for Healthcare & Modern Offices

In modern facilities, acoustic comfort is as important as structural integrity. The ABH 6814Q is designed to provide a seamless, silent experience that supports both patient healing and workplace productivity:

• Zero-Decibel Quiet Technology: The "Q" series is the gold standard for noise-sensitive zones. It provides a definitive solution for door restoration by replacing loud, traditional latches with a dampened mechanism that prevents acoustic disturbance during operation.
• Intuitive Push Down / Pull Down Action: The 6814Q configuration is a popular choice for medical staff and maintenance teams. It allows for effortless, hands-free operation using an elbow or hip—a vital solution for door surface repair and superior hygiene maintenance in sterile environments.
• Patented Linear Acting Cam: Built with an advanced internal cam system (Patent #7,258,374), this latchset provides a fluid, frictionless motion that far outlasts traditional pivoting mechanisms, making it a reliable solution for commercial door security.

• ADA Compliant & Accessible: Requires less than 5 lbs of force to activate, ensuring your facility remains fully accessible and compliant with all ADA requirements.


Heavy-Duty Stability with Thru-Bolt Engineering

The ABH 6814Q is a Grade 1 architectural component designed for high-abuse, high-frequency environments. It acts as a robust solution for door edge reinforcement through its superior mounting architecture:

• Four Thru-Bolt Security: To ensure the unit never sags, wobbles, or pulls loose, the trim is mounted using four thru bolts. This creates a secure, reinforced connection that is significantly more durable than standard hardware held only by surface screws.

• Architectural Satin Stainless Steel: Finished in US32D (630), the 6814Q is naturally corrosion-resistant and easy to sanitize, maintaining a premium look in luxury office interiors or medical patient rooms.

• Field-Reversible Handing: While typically handed upon order, the internal cam holder assembly is field-reversible. This provides a versatile solution for door restoration if room functions or door swings change after installation.

• UL Fire Rated: Listed for use on fire doors rated up to 90 minutes, ensuring your facility meets the highest life safety standards.


Technical Details & Specifications

• Brand: ABH Manufacturing
• Model: 6814Q (Quiet Series)

• Finish: US32D / 630 (Satin Stainless Steel)
• Operation: Push Down / Pull Down
• Standard Door Thickness: 1-3/4" (Options available for "THICK" doors)

• Backset: 2-3/4" Standard (3-3/4", 5", and 7" options available)

• Mounting: Four-Bolt Thru-Bolt Design

• Certifications: ANSI/BHMA Grade 1, ADA Compliant, UL Listed


Why Choose the ABH 6814Q?

When upgrading your facility to meet modern standards of silence and durability, the ABH 6814Q is the highest-performing hardware choice. Its combination of a low profile aesthetic and heavy-duty thru-bolt stability makes it a permanent solution for door restoration. Whether outfitting a private hospital wing or a corporate library, this latchset ensures a quiet, professional, and compliant opening every time.
