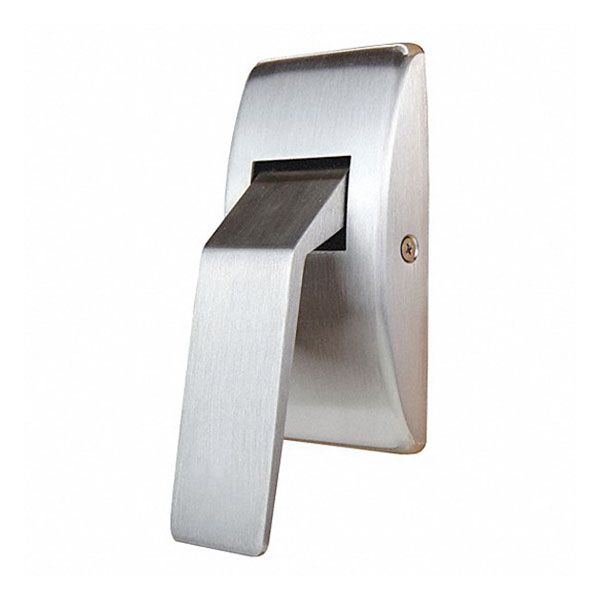

ABH 6813Q Low Profile Quiet Push/Pull Latchset | Satin Stainless Steel

The ABH 6813Q represents the pinnacle of silent door hardware, serving as the premier solution for commercial door convenience in environments where noise control is a clinical or professional necessity. Specifically engineered for healthcare facilities, quiet zones, and high-end commercial offices, this low profile quiet push/pull latchset features a specialized Push Up / Pull Up handle orientation. By utilizing a patented linear acting cam, the 6813Q eliminates the disruptive mechanical "clack" of traditional hardware, achieving zero decibel ambient noise gain for a truly silent opening.

The Ultimate Silent Solution for Hospitals & Executive Suites

In high-performance facilities, the sound of a door latching shouldn't disturb a patient's rest or an executive's focus. The ABH 6813Q provides a sophisticated, whisper-quiet experience:

• Zero-Decibel Quiet Technology: The "Q" series is the industry benchmark for noise-sensitive zones. It provides a definitive solution for door restoration by replacing noisy, standard latches with a dampened mechanism that prevents acoustic disturbance.
• Specialized Push Up / Pull Up Action: The 6813Q configuration is often selected for specific ergonomic workflows or specialized facility requirements, allowing for effortless, hands-free operation via an elbow or arm—a vital solution for door surface repair and superior hygiene.
• Patented Linear Acting Cam: Unlike standard pivoting latches that can feel "sticky" or loud, the internal linear cam (Patent #7,258,374) ensures a fluid, frictionless motion that extends the life of the hardware.

• ADA Compliant Accessibility: This latchset requires less than 5 lbs of force to operate, ensuring your facility remains fully accessible and compliant with all ADA requirements.

Heavy-Duty Stability with Thru-Bolt Engineering

The ABH 6813Q is a Grade 1 architectural component designed for extreme duty cycles. It serves as a robust solution for door edge reinforcement through its high-strength mounting architecture:

• Four Thru-Bolt Security: To ensure the unit never sags or pulls loose under heavy use, the trim is mounted using four thru bolts. This creates a secure "sandwich" on the door, offering significantly more durability than hardware held by simple surface screws.

• Architectural Satin Stainless Steel: Finished in US32D (630), the 6813Q is naturally corrosion-resistant, easy to sanitize, and maintains a premium look in luxury office interiors or sterile medical environments.
• Field-Reversible Handing: While typically specified during the ordering process, the internal cam holder is field-reversible, providing a versatile solution for door restoration if room functions or door swings change.
• UL Fire Rated: Listed for use on fire doors rated up to 90 minutes, ensuring the highest standards of life safety are maintained.


Technical Details & Specifications

• Brand: ABH Manufacturing
• Model: 6813Q (Quiet Series)
• Finish: US32D / 630 (Satin Stainless Steel)
• Operation: Push Up / Pull Up
• Standard Door Thickness: 1-3/4" (Specify for "THICK" door options)
• Mounting: Four-Bolt Thru-Bolt Design
• Certifications: ANSI/BHMA Grade 1, ADA Compliant, UL Listed

Why Choose the ABH 6813Q?

When upgrading a facility to meet modern standards of silence and structural integrity, the ABH 6813Q is the highest-performing hardware choice. Its combination of a low profile aesthetic and heavy-duty thru-bolt stability makes it a permanent solution for door restoration. Whether outfitting a private hospital wing or a corporate library, this latchset ensures a quiet, professional, and compliant opening every time.
