Sargent 10X Line: The New Standard for High-Abuse Security
Engineered to exceed Grade 1 standards by 20x, the 10X Line delivers 20 million cycles of reliable performance for the most demanding commercial openings
Sargent 10X Line
Maximum Durability: While standard Grade 1 locks are tested to 1 million cycles, the 10X Line is independently verified to exceed 20 million cycles. Its unique T-Zone construction and heavy-duty torsion springs eliminate lever sag and withstand extreme torque and impact.
Seamless Retrofit: Designed to fit the standard 161 door prep, the 10X Line is the perfect "drop-in" replacement for existing hardware. It maintains the classic look of the original 10-Line while offering significantly enhanced internal strength.
Vandal-Resistant Design: Features like the Freewheeling lever and robust all-metal chassis make this lock nearly impossible to defeat through brute force, providing peace of mind for high-traffic corridors and exterior perimeters
View the complete Sargent 10X Line Catalog for a full overview of available finishes, lever styles, and certified features. This comprehensive guide provides the architectural specifications and ordering information needed to select the right hardware for your project.
Access detailed exploded-view diagrams and comprehensive Sargent 10X Line Parts Manual for maintenance and repair. This manual identifies every internal component—from latches and springs to tailpieces—ensuring you can accurately order replacement parts to extend the life of your hardware.
Download precise Sargent 10X Line Installation Template(s) for accurate door and frame preparation. These technical drawings ensure proper hole spacing and alignment for standard 161 door preps, helping installers avoid costly errors and ensuring the lock or hinge functions perfectly upon installation.
Standard 10X Line Wood or Metal Door (2-3/4" B.S.) Template
Electrified 10X Line Wood or Metal Door (2-3/4" B.S.) Template

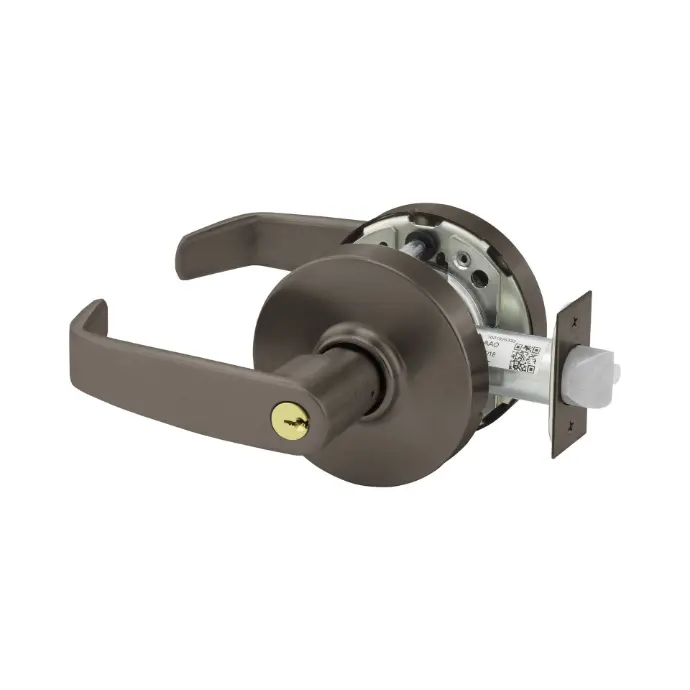

10X Line Locksets
Upgrade to the industry's toughest cylindrical hardware. Engineered to exceed Grade 1 standards by 20x, the Sargent 10X Line is tested to 20 million cycles, offering unmatched durability and "T-Zone" strength for high-abuse environments like schools and hospitals.

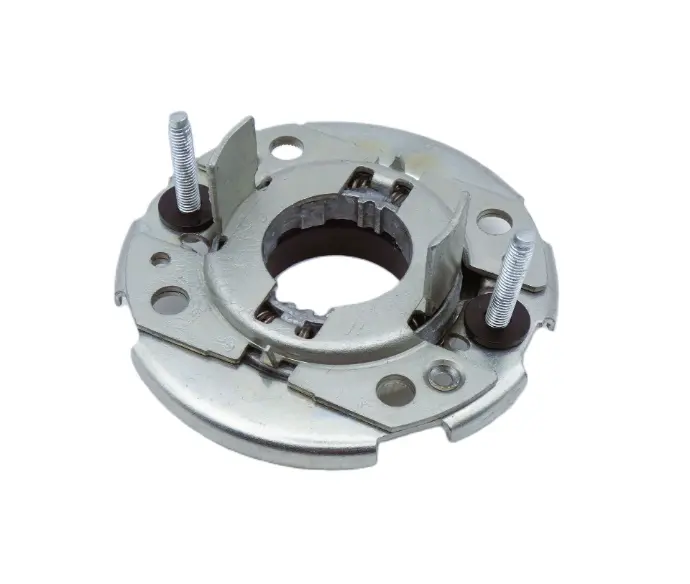

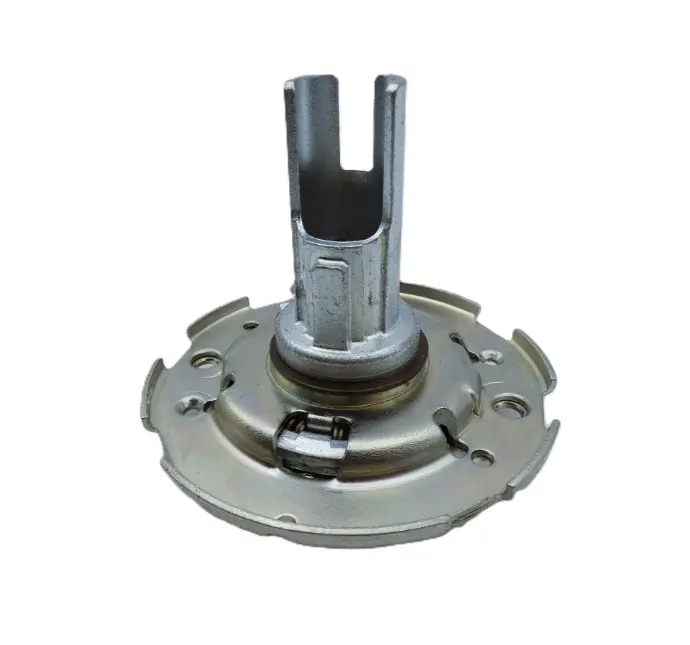

10X Series Parts
Maintain your hardware’s peak performance and 10-year warranty with genuine Sargent 10X parts. We stock everything from replacement latchbolts and lever assemblies to specialized rose kits, ensuring a perfect fit and continued UL fire-rated compliance.
Discontinued 10-Line Parts
Extend the life of your legacy hardware with our inventory of Sargent 10-Line replacement parts. We provide essential components like cylinders, tailpieces, and springs to help you repair and maintain your existing openings without the cost of a full hardware replacement.
