PDQ 6300 Series: Grade 1 Heavy-Duty Wide Stile Exit Devices
The PDQ 6300 Series is a premier Grade 1 exit device designed to provide maximum security and life-safety at a competitive price point. Engineered for high-traffic environments like schools, retail hubs, and industrial facilities, the 6300 Series features a rugged, wide-stile design that fits a minimum 4-1/2" stile. With its stainless steel latchbolt and deadlocking feature, it offers the same level of protection as top-tier architectural brands while remaining budget-friendly for large-scale retrofits.

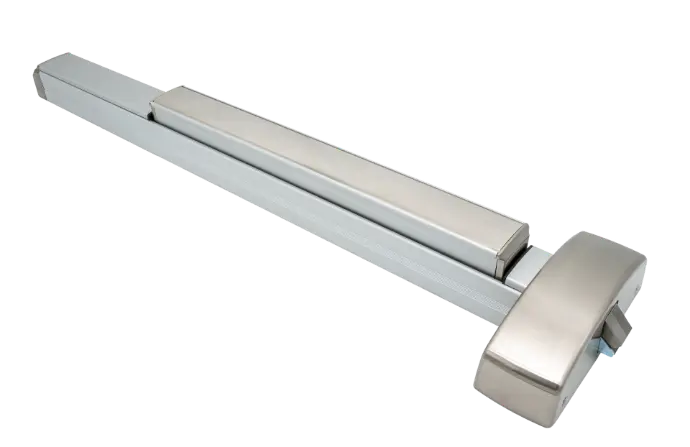

6300 Series Exit Devices
The PDQ 6300 Series is a "contractor favorite" due to its field-sizable design and ease of installation. Certified to ANSI/BHMA A156.3 Grade 1 and UL Listed for 3-hour fire doors, this series is available in Rim, Surface Vertical Rod (SVR), and Concealed Vertical Rod (CVR) configurations. Whether you need Motorized Electric Latch Retraction (MLR) for an access control system or a standard panic bar for a warehouse exit, the 6300 Series provides a reliable, ADA-compliant solution.
Download the PDQ 6300 Series Catalog to view full architectural details, including the 6300R Rim, 6300V Vertical Rod, and 6300C Concealed devices. Explore our range of BHMA finishes, from 626 Satin Chrome to 613 Oil Rubbed Bronze, and find the perfect configuration for your facility's security needs.
Discover the most versatile line of exit hardware, engineered for maximum durability in high-traffic environments. This collection includes Rim and Mortise devices for standard doors, Surface Vertical Rod (including LBR) and Concealed Vertical Rod options for double doors, and specialized Narrow Stile designs tailored for aluminum and glass storefronts.
PDQ 6300R - Rim Device Template
PDQ 6300R - Rim Device w-Double Door Strike Template
PDQ 6300R - Rim Device Windstorm Template
PDQ 6300R - Rim Panic Device w-Mullion Template
PDQ 6300M - Mortise Device Template
PDQ 6300V - 6300VF - SVR Device Template
PDQ 6300C - CVR Metal Door Device TemplatePDQ 6300CW - CVR Wood Door Template
PDQ 6S Sectional Trim Template - 6300 Series Device
The PDQ 6300 Series Installation Instructions provide technical guidance for a precision fit on any wide-stile door. This guide covers essential steps for field-sizing the aluminum rail, adjusting stainless steel latchbolt engagement, and configuring specialized options like Motorized Latch Retraction (MLR). Whether mounting a 6300R Rim or 6300V Surface Vertical Rod, these instructions ensure smooth, ADA-compliant operation and protect the series' 15-year warranty.
PDQ 6W 6N 6T Wide and Narrow Escutcheon Exit Trim Installation Instructions
Device Accessories

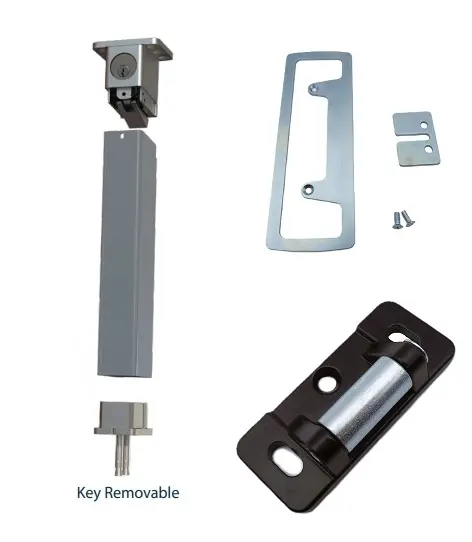

Keep your hardware in top condition with genuine PDQ 6300 Series Parts. We stock essential maintenance items, including replacement end caps, dogging keys, and strike plates. For specialized applications, browse our 6300 Accessories for Thru Bolt (SNB) kits, Shim kits for glass-molded doors, and Extension Rods for high-clearance openings.

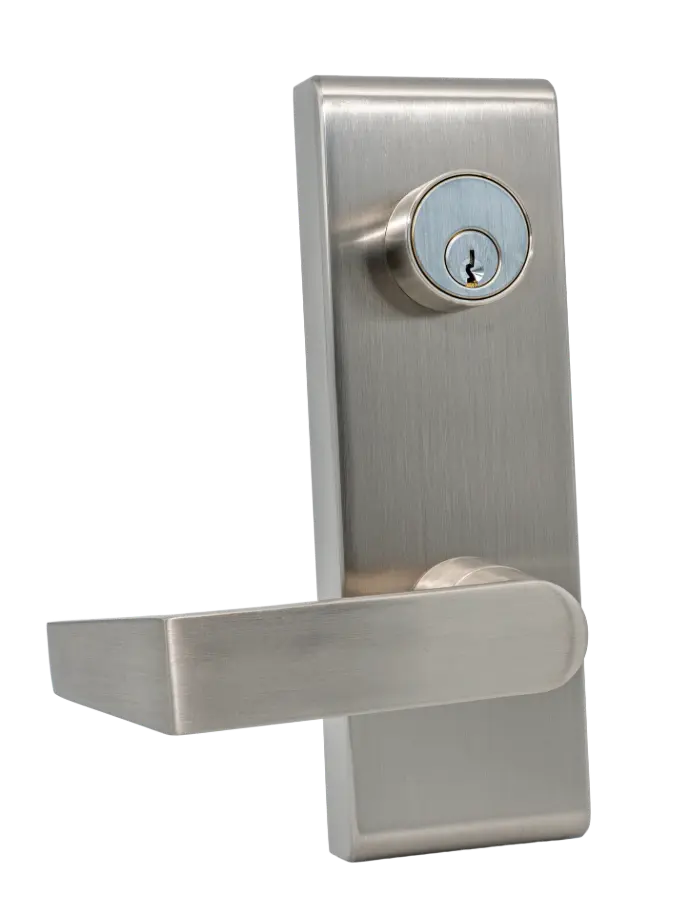

6300 Series Exit Trims
The PDQ 6300 Series Outside Trims offer a wide array of entry functions, including Classroom (08), Night Latch (03), and Passage (14). Choose from the classic 6-Series Escutcheon or the modern 6-Series Rose trims. All trims are designed to meet ADA requirements and are available with various lever styles to match your building's existing hardware.
